Standard Fittings      Special Fittings       Fittings Available     Product Specs    Liner Thickness

150# & 300# PTFE Lined Fittings

JCS Lined Piping Products currently manufactures 150# and 300#
PTFE Lined Pipe & fittings up thru 8 inch sizes.  Look below
to view our product line which we are always expanding.  We are also
interested in parts with non-standard dimensions or specials.
Our 90 fittings have no stress on the PTFE liner in them because it is
molded to fit the body.  Many producers of
these parts use straight pipe and force the
liner to bend.  Other companies make the liner
inside the fitting.  This however causes a gap between the metal housing and
the liner, reducing its strength and vacuum rating.
Special Fittings
We also can produce Reducing Crosses, Instrument Tees with 2 outlets 180 degrees apart,
and Tees with three different outlets.  These parts can save you money because they
reduce the need for multiple fittings.  They also can work in areas where you have space constraints.
JCS also can manufacture non-standard dimension fittings for those situations.
Standard Liner Thickness
Below is our standard liner thickness for 1/2"-8" Fittings.  Also listed is the
minimum liner thickness as required by ASTM F1545.
Fitting Size JCS Standard Liner Thickness(+/- .005") ASTM F1545 Minimum Approximate Finish ID of Fitting
1" 0.125" 0.120" 0.812"
1-1/2" 0.150" 0.120" 1.262"
2" 0.165" 0.120" 1.73"
3" 0.190" 0.120" 2.68"
4" 0.220" 0.120" 3.62"
6" 0.250" 0.125" 5.56"
8" 0.280" 0.125" 7.56"
3/4" 0.120" 0.120" 0.635"
1/2" 0.120" 0.120" 0.510"

PTFE LINED FITTING SHAPES AND SIZES AVAILABLE2

For Dimensional Information on each Shape click on the heading or shape below

Printable chart of shapes and sizes

----------------------------------------------------------------------

PTFE Lined Equal Tees



           Sizes: 1", 1-1/2", 2", 3", 4", 6", 8"



           Dimensional Data and Specs

----------------------------------------------------------------------

PTFE Lined Reducing Tees



           Sizes: 1", 1-1/2", 2", 3", 4", 6", 8"

           Dimensional Data and Specs

----------------------------------------------------------------------

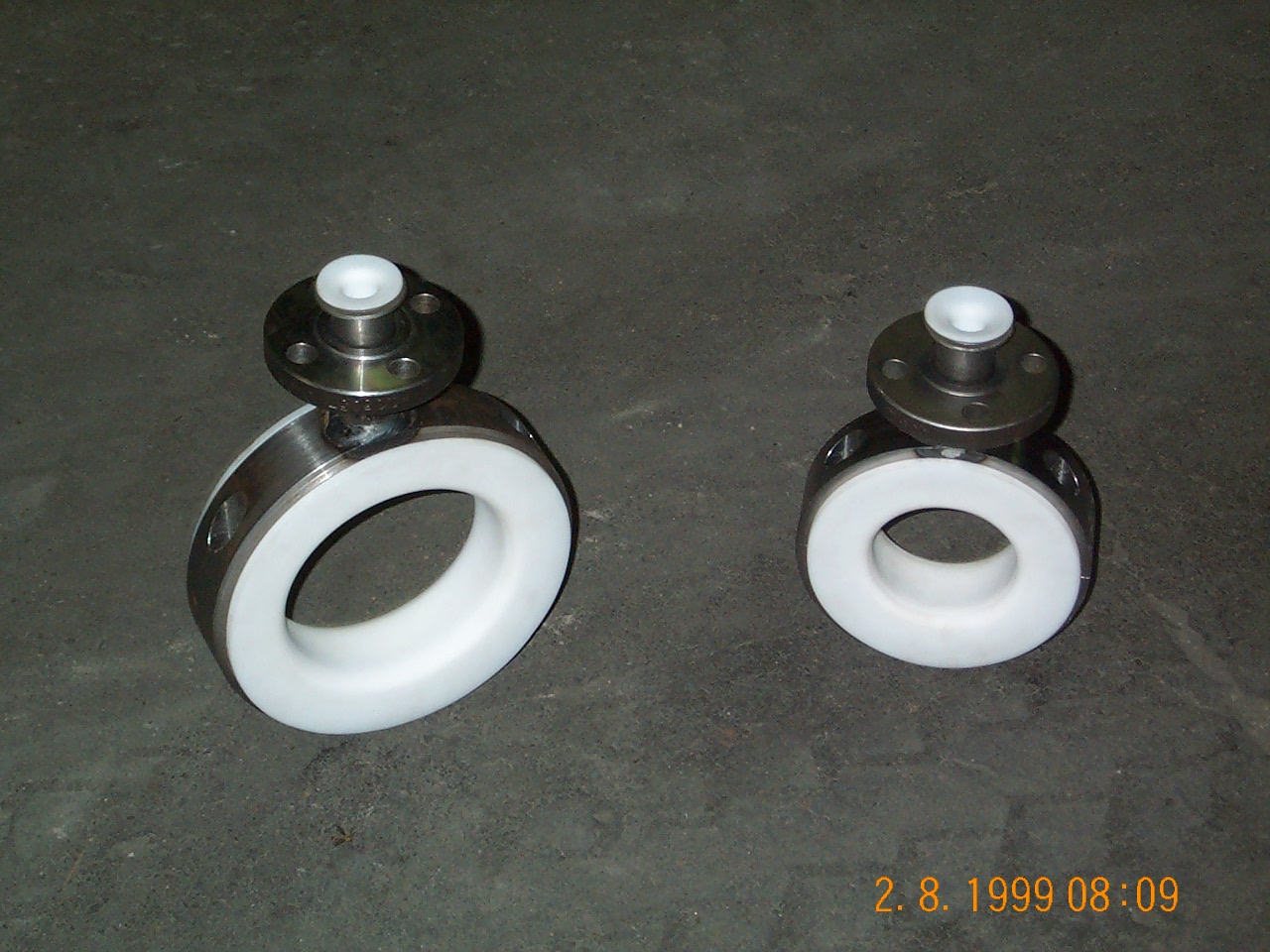

PTFE Lined Instrument Tees



           Sizes: 1", 1-1/2", 2", 3", 4", 6", 8"

           With Outlets of size: 1/2", 3/4", 1", 2", 3"

            Dimensional Data and Specs





----------------------------------------------------------------------

PTFE Lined Short Stack Tees

        Sizes: 1", 1-1/2", 2", 3", 4", 6", 8"



           Dimensional Data and Specs



----------------------------------------------------------------------

PTFE Lined Short Stack Crosses

Sizes: 1", 1-1/2", 2", 3", 4", 6"



Dimensional Data and Specs







----------------------------------------------------------------------



PTFE Lined Reducing Filler Flanges

    Sizes: 1/2", 3/4", 1", 1-1/2", 2",

     2-1/2", 3", 4", 6" ,8", 10", 12"

        Dimensional Data and Specs

                                                               300# Dimensional Data and Specs

                                                                Scalloped style available

----------------------------------------------------------------------

PTFE Lined 90 Degree Elbows



    Sizes: 1", 1-1/2", 2", 3", 4", 6", 8"

    Special Reducing Elbows: 1-1/2" x 1", 2" x 1", 2" x 1-1/2", 3" x 2", 4" x 3"

    6x4 is now available

    Dimensional Data and Specs



----------------------------------------------------------------------

PTFE Lined 45 Degree Elbows



    Sizes: 1", 1-1/2", 2", 3", 4", 6", 8"

    Dimensional Data and Specs





----------------------------------------------------------------------

PTFE Lined Concentric Reducers





           Sizes: 1/2", 3/4", 1", 1-1/2", 2"

           2-1/2", 3", 4", 6", 8", 10"

            12" soon available

            Dimensional Data and Specs



----------------------------------------------------------------------

PTFE Lined Eccentric Reducers



            Sizes: 1/2", 3/4", 1", 1-1/2", 2"

           2-1/2", 3", 4", 6" 8", 10"

            Dimensional Data and Specs



----------------------------------------------------------------------

PTFE Lined Armored  and Ring Spacers(full face & standard)

           Sizes: 1", 1-1/2", 2", 3", 4", 6" 8"

         Dimensional Data and Specs



----------------------------------------------------------------------

PTFE Ring Spacers(Solid PTFE) and Full Face



         Sizes: 1", 1-1/2", 2", 3", 4", 6" 8"

         Dimensional Data and Specs





----------------------------------------------------------------------

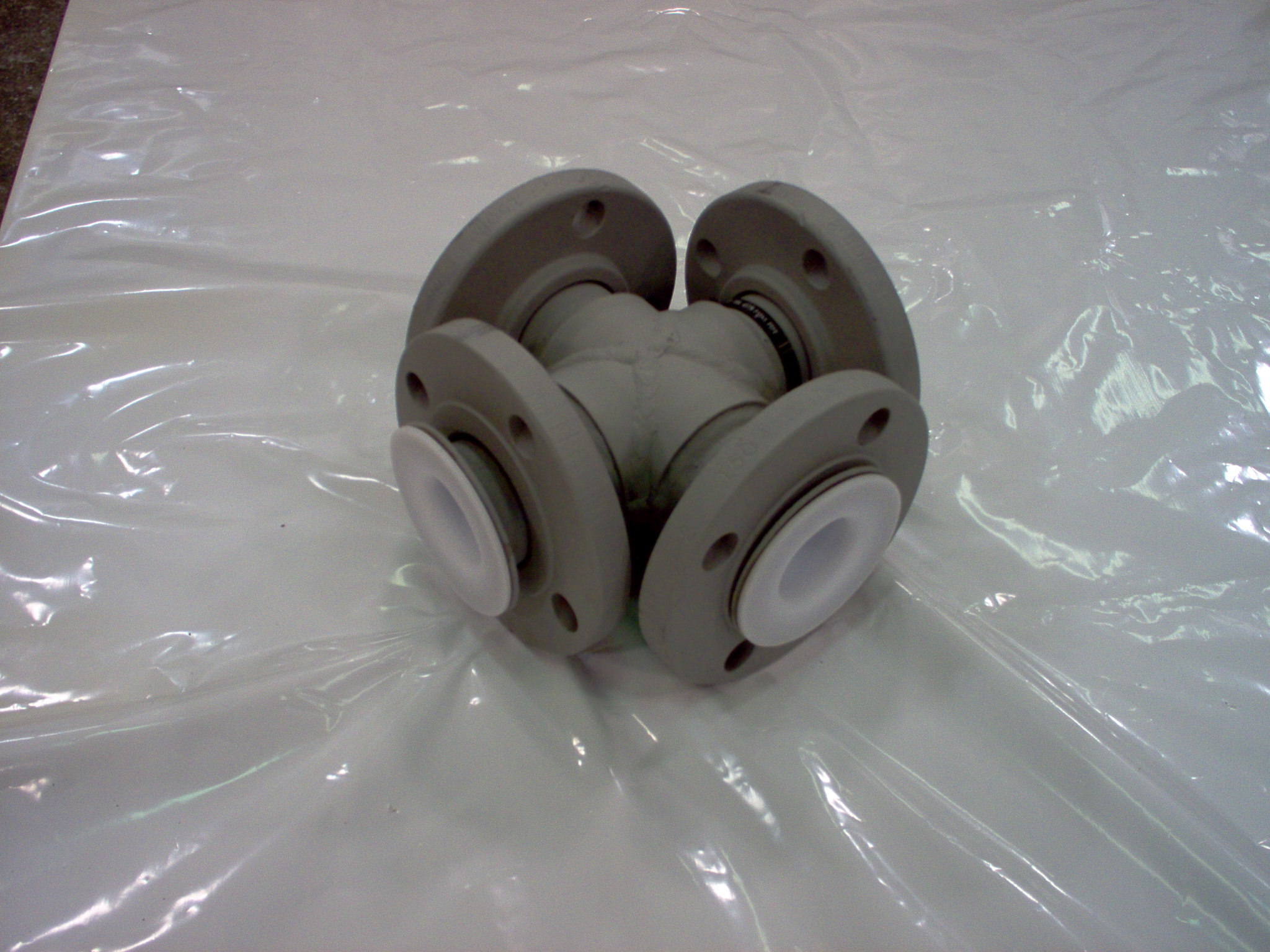

PTFE Lined Crosses



        Sizes: 1", 1-1/2", 2", 3", 4", 6"

         Dimensional Data and Specs





----------------------------------------------------------------------

PTFE Lined Laterals



        Sizes: 1", 1-1/2", 2", 3", 4", 6"

         Dimensional Data and Specs







----------------------------------------------------------------------

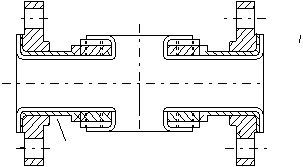

PTFE Lined Distance Spools

         Sizes: 1", 1-1/2", 2", 3", 4", 6", 8"

         Dimensional Data and Specs



----------------------------------------------------------------------
